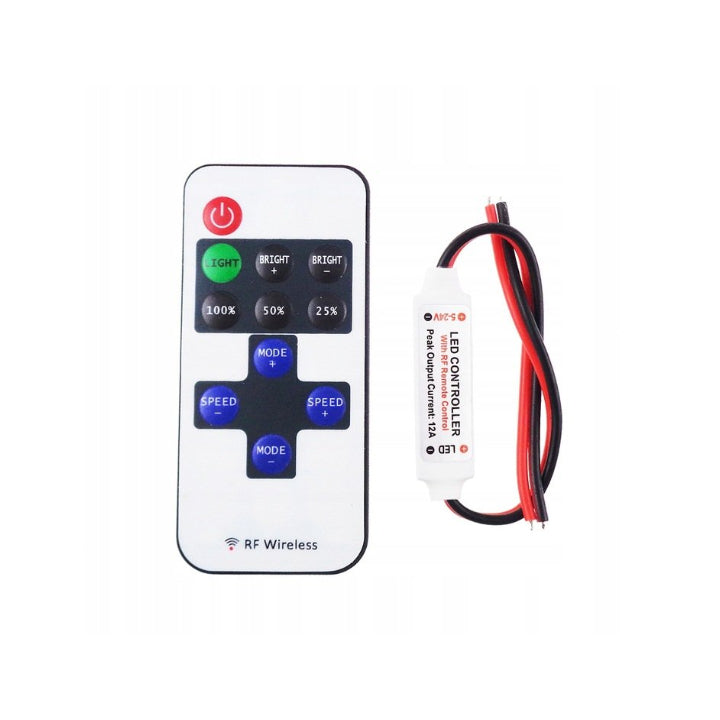

LED Dimmer with Remote Control - Type 1

The device is used to easily and quickly control the light intensity of all single-color LED strips. Communication between the controller and the remote control is carried out using radio waves - RF. The range of the remote control in open space is approx. 5 meters. Factory-programmed functions and modes allow, among other things, on the remote control: turn the light on and off, dim and brighten static colors.

The device also stores in memory the last used combination - the so-called "power off memory" function allows viewing of the same program after the controller is turned on again / the power supply is interrupted.

Specification:

• Power supply: DC 12V / DC 24V

• max. load power: 72W / 6A

• Operating range: 0-72W / 0-6A

• Number of channels: 1

• Dimming/brightening function: YES

• Brightness adjustment range: 0 ~ 100%

• Regulation method: radio waves

• Operating temperature: -20 ~ + 60°C

• Controller dimensions: 43mm x7mm x12mm, length with cable: 160mm

• Remote control dimensions: 86mm x 33mm x 7mm

Pair the remote control with the receiver: press and hold speed+ and speed- simultaneously or press both buttons several times simultaneously. The remote control is factory-paired with the receiver, but we provide these pairing instructions because occasionally during use the remote control may decode, especially when the receiver is operating near other radio devices.
