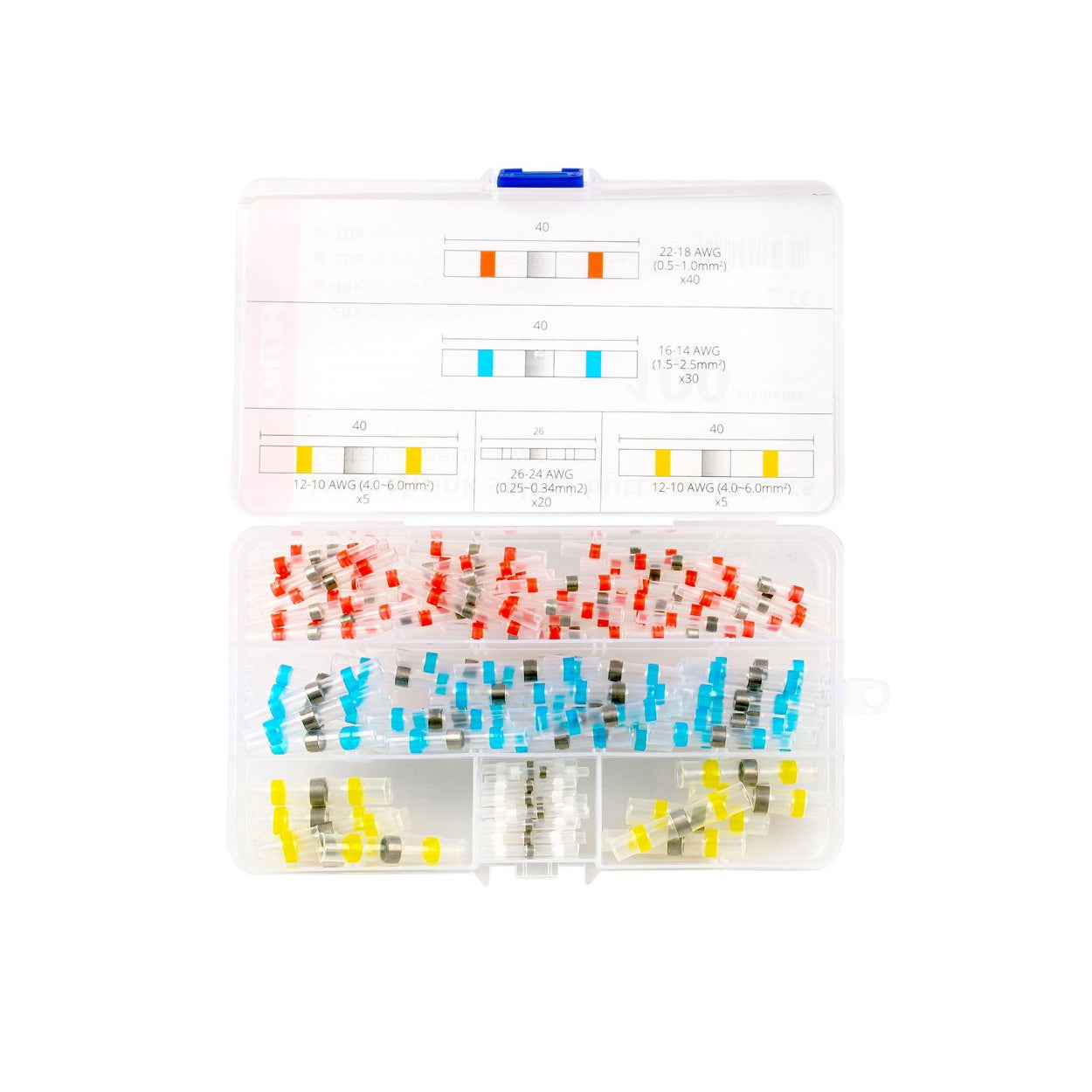

Set of Solder Joint Sleeves, 100pcs, AMIO

PIPE CONNECTORS, SHIRT COVERS

HEAT SHRINK WITH TIN 100 pcs

-Easy one-step cable connection
-You do 3 things at once - soldering, insulating and sealing
-Polyolefin tube outside and tin inside
-Solder and gasket and advanced waterproof function
-Polyolefin heat shrink connectors improve pull-out strength, provide sealing, strain relief, cable control and insulation
-Delivered in sturdy packaging with a bundle for easy sorting.
-Durable - excellent resistance to stretching and mechanical damage; Perfectly transparent heat shrink tubing ensures tensile strength; High flexibility.

Tin inside - for best results, use hot air until it reduces in size and the dissolved glue will fill the holes in the shirt. Rotate the coupling continuously while heating so that the jacket heats evenly.

Waterproof - Polyolefin tubing outside and hot melt adhesive inside ensure excellent waterproofing, can be perfect for marine and automotive, home and electronics applications.

-Minimum solder temperature to melt: 138°C
-Minimum shrink temperature: 80°C
-Working temperature: -55℃ - 125℃

Diameter of electrical cables:

-White: 0.25-0.34 ² mm - 20 pcs
-Red: 0.5-1.0 ² mm - 40 pcs
-Blue: 1.4 -2.5 ² mm - 30 pcs
-Yellow: 4.0-6.0 ² mm - 10 pcs

Crimp Fittings Size:

-Red: diameter 3.0 mm
-Blue: diameter 5.0 mm
-White: diameter 1.5 mm
-Yellow: diameter 6.0 mm
