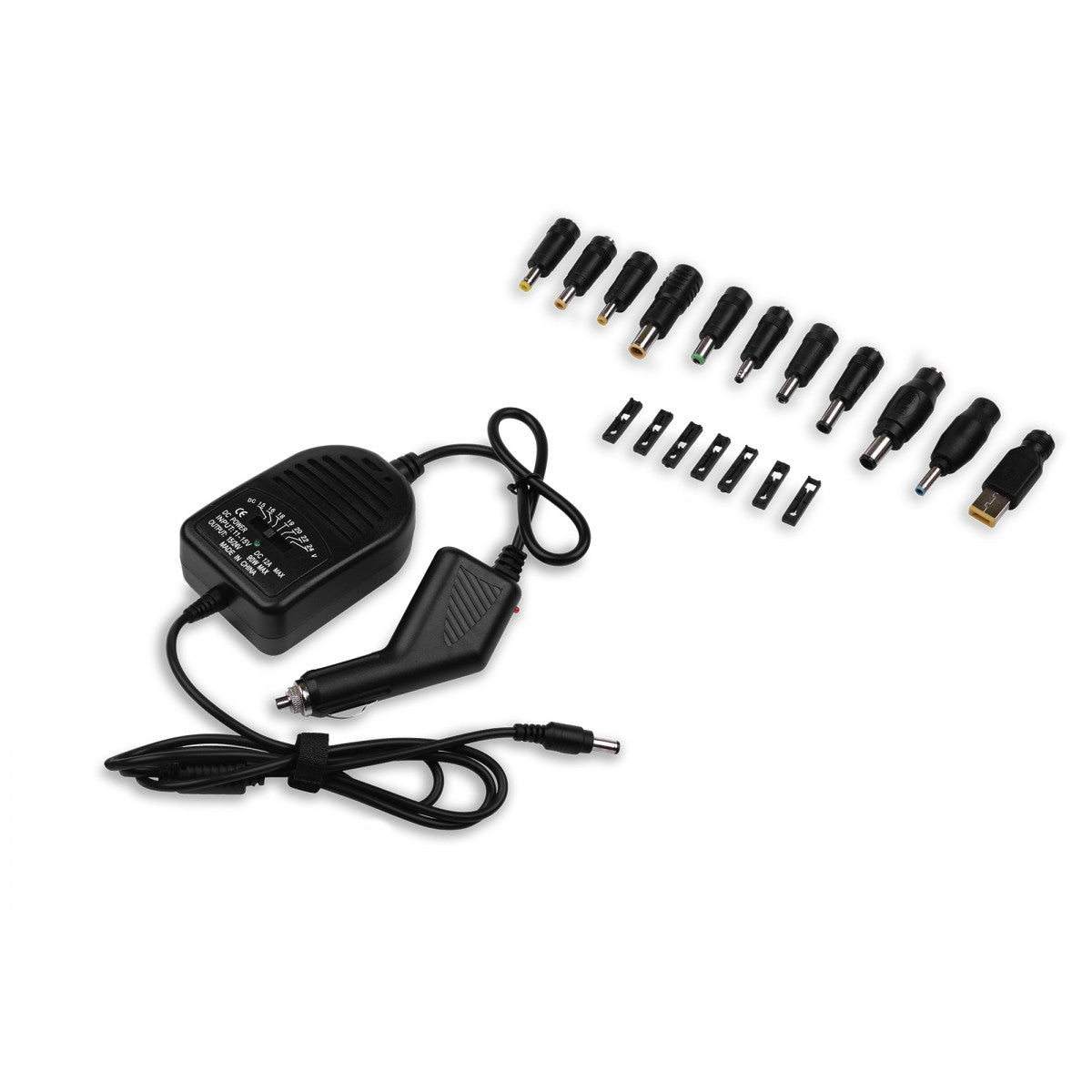

Power supply for laptop, DC 120W 12V

Universal power supply for laptop, DC 120W 12V, powered by 11-14.5V. The output voltage is selected using a switch on the housing. The kit includes a cap that allows you to lock the switch at the selected output voltage value.

The most important features:

• Electronics based on a modern and fast microprocessor
• The charger protects the battery and laptop from overcharging, short circuiting, overvoltage or overheating
• After charging the laptop battery, the power supply disconnects from the charging process and switches to maintenance mode

Which devices does it work for?

• Type A: 6.5x4.4mm - Fujitsu, Sony, Samsung
• Type B: 5.5x2.5mm - Liteon, NEC, Toshiba
• Type D: 6.3x3.0mm - Nec, Toshiba
• Type E: 4.8x1.7mm - Compaq, HP, Delta, Asus, Nec
• Type F: 5.5x.2.5mm- Acer, Compaq, Delta, Fujitsu, HP, IBM, Liteon
• Type G: 5.5x3.0mm - Samsung
• For Dell: 7.4x5.0 mm - Dell
• Type L: IBM 20V 4.5A
• Type P: 4.8x1.7mm - Compaq, Asus
• Type X: HP 15V-24V, 3.75A-6A
• Type Z: Lenovo 15V-24V, 3.75A-6A

TECHNICAL DATA:

• Total power (instantaneous): 120W
• Input voltage: 11-15V
• Output voltage: 15-24V (adjustable)
• Dimensions: 126x69x32.8mm
• Warranty: 12 months
