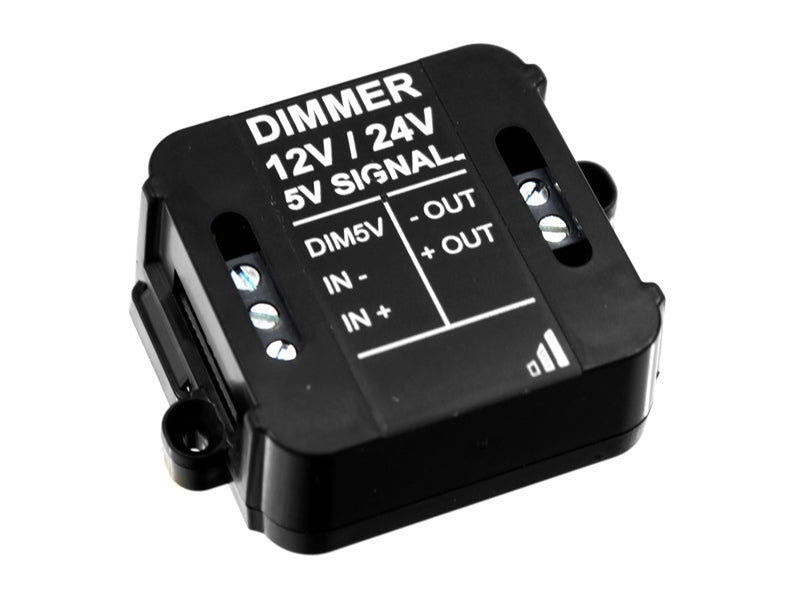

Dimmer 12V-24V with 5V Control (Scania), Matronics

Controls that convert the 5V signal from Scania's built-in dimmer to 12V or 24V, depending on the connected power supply. This means you can connect regular LEDs and LED strips and still dim them with the built-in 5V dimmer.

The controller is easy to connect with screw terminals.

Connection:

• ENTRANCE

  • DIM5V – Plus from Scania's dimmer is connected here (5V)
  • IN– Connect to negative from the truck (12V/24V)
  • IN+ Connect to ground from the truck

• EXIT

  • OUT+ Output with plus for the lights (12V/24V)
  • OUT– Output with minus for the lights

It is important that you use both GND and 24V on the controller when the lights are connected. The controller must be as close as possible to the dimmer.

The maximum current is 5A, and there is a 5A fuse (type 2410 smd) on the circuit board.
