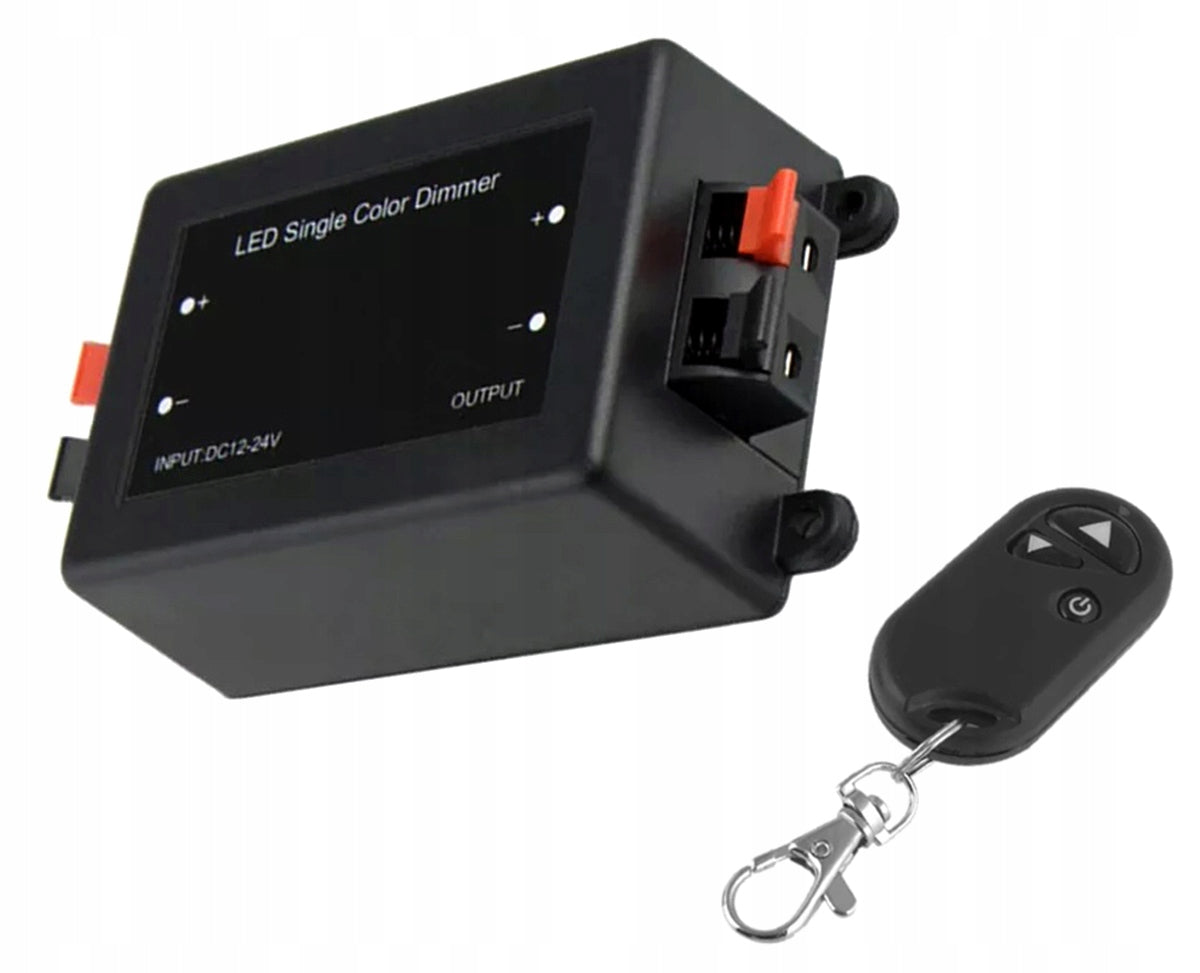

LED Dimmer with Remote Control - Type 2

The device is used to easily and quickly control the light intensity of all single-color LED strips. Communication between the controller and the remote control is carried out using radio waves - RF. The range of the remote control in open space is approx. 15 meters. Factory-programmed functions and modes allow, among other things, on the remote control: turn the light on and off, dim and brighten static colors.

The device also stores in memory the last used combination - the so-called "power off memory" function allows viewing of the same program after the controller is turned on again / the power supply is interrupted.

Specification:

• Material: plastic

• Power supply (input): 12V - 24V

• Maximum load: 8A

• Maximum output power: 96W (12V) / 192W (24V)

• Communication method: radio signal

• Signal frequency (remote control): 433 MHz

• Range (maximum): up to 15 meters

• Operating temperature: -20 degrees Celsius to +60 degrees Celsius

• The ability to turn off the tape with one button

• Smooth adjustment of LED strip brightness: 1%-100%

• Remote control with battery included

• Convenient power and output connector (terminals).

• Dimensions (controller): 10.0 cm x 5.8 cm x 3.5 cm

• Dimensions (remote control): 5.8 cm x 3.0 cm x 1.2 cm

• Black color
