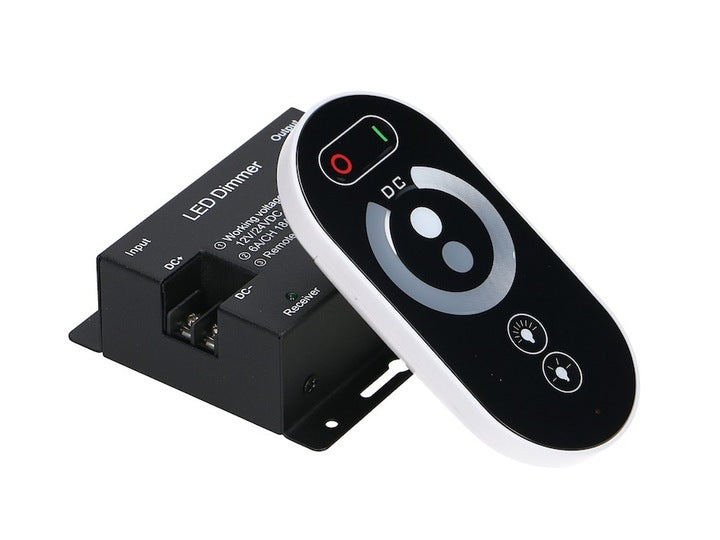

LED Dimmer with Touch Remote Control - Type 3

PROFESSIONAL LED DIMMER with RF radio remote control at 2.4GHz frequency.

The device is used to easily and quickly control the light intensity of all single-color LED strips. Communication between the controller and the remote control is carried out using radio waves - RF. The range of the remote control in open space is approx. 20 meters. Factory-programmed functions and modes allow, among other things, on the remote control: turn the light on and off, dim and brighten static colors.

The device also stores in memory the last used combination - the so-called "power off memory" function allows viewing of the same program after the controller is turned on again / the power supply is interrupted.

Specification:

• DC connector and plug - Connectors in the form of terminals for wires

• Input voltage - 12-24V DC

• Max load - 216 W / 18 A - HIGHEST OUTPUT POWER - High maximum
• current load allows you to connect quite long sections of LED strips to the controller, for example 45 meters of strip with 3528 diode 60LED/meter

• Remote control range - up to 20 meters

• Aluminum driver - highest quality

• Features - Smooth or step-by-step brightness adjustment, from full power to complete shutdown

• Control type - RADIO RF

• Smoothness adjustment range - 0 - 100%

• Operating temperature - -20 + 60°C

• Control dimensions - 8.2 x 8.2 x 3.3 cm

• Remote control dimensions - 5.5 x 11.4 x 3.3 cm

• Output signal - PWM

• Dedicated to single-color MONO LED strips

• The device also stores the last used combination in memory --> Power off memory, displays the same program after turning the controller off again / cutting off the power supply.
