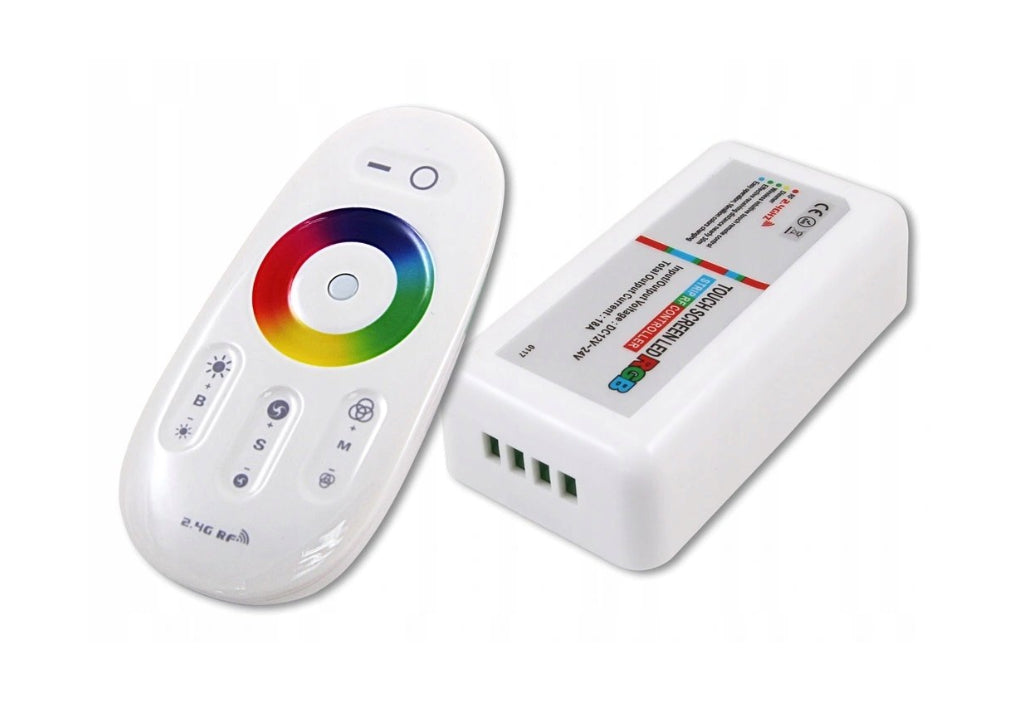

RGB controller is a device that allows you to control the color of the light in an RGB device, such as LED strip. The controller can support all RGB devices with DC 12-24V power supply and max. 216W.
The controller has options for lighting effects (dynamic color change), which are available immediately after pressing the button. In addition, the light source can also be dimmed.
The controller is radio controlled, which means that the remote control communicates with the controller via radio frequency. The advantage of this solution is a much wider range of applications for the remote control than in the case of traditional IR (infrared) controllers.
Specification:
The controller has options for lighting effects (dynamic color change), which are available immediately after pressing the button. In addition, the light source can also be dimmed.
The controller is radio controlled, which means that the remote control communicates with the controller via radio frequency. The advantage of this solution is a much wider range of applications for the remote control than in the case of traditional IR (infrared) controllers.
Specification:
- Operating temperature: -20°C - 60°C
- Acceptable input voltage: DC 12/24V
- Pilot dimensions: 110x52x20[mm]
- Unit dimensions: 85x45x23 [mm]
- Number of channels: 3
- power max. : 216W
- intensity max. : 18A (6A for each channel)
- The communication method between the remote control and the controller: RF 2.4G (radio)
- Range: 30m
- Number of programs: 20
- Resistance class: IP20
